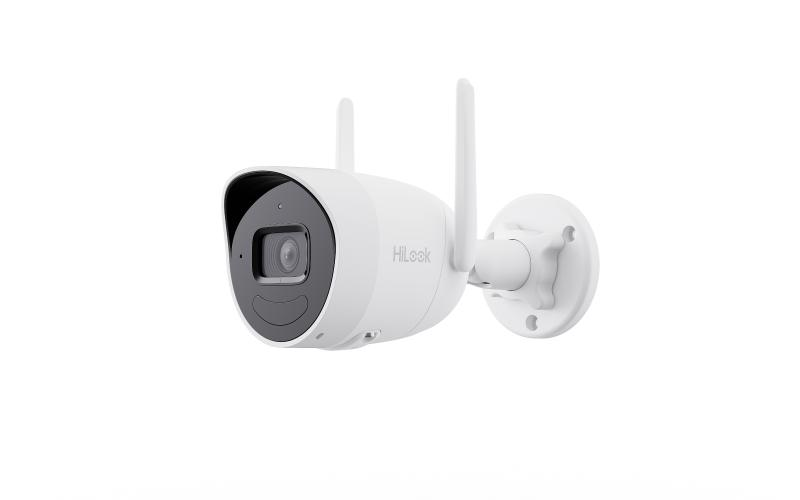

4 MP Outdoor Wi-Fi Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Realizing Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
EXIR 2.0, advanced infrared technology with long IR distance
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP66)
Hik-Connect cloud service and app for remote management and views of devices

View Less

Available models:

IPC-B140HA-D/W(2.8mm)(W)(HiLook STD)/EU

IPC-B140HA-D/W(4mm)(W)(HiLook STD)/EU

IPC-B140HA-D/W(W)

Specification
Resources
Accessories

Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/25 s to 1/10000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
ApertureF1.6
Iris TypeFixed
Lens MountM12
Depth of Field2.8 mm: 1 m to ∞ 4 mm: 1.5 m to ∞

DORI
DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light TypeIR
IR Wavelength850 nm
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Video
Main Stream50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264
Video Bit Rate256 Kbps to 2 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR

Audio
Audio Compression G.711,AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz,16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
Simultaneous Live ViewUp to 4 channels
APIONVIF, SDK
SecurityPassword protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface
User/HostOnly one user: administrator
ClientiVMS-4200, HiLookVision, Hik-Partner-Pro

Wi-Fi
Transfer Rate11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
Wi-Fi Protocol802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range2.412 GHz to 2.472 GHz
Channel Bandwidth 20 MHz
Modulation802.11b: CCK,QPSK,BPSK,,802.11g: OFDM,,802.11n: OFDM
Wireless RangeUp to 120 m (The performance varies based on actual environment)
Encryption ModeWPA-PSK/WPA2-PSK
Antenna2 Antennas

Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software
Day/Night SwitchAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)Digital WDR
Privacy Mask4 programmable polygon privacy masks

Interface
Built-in MicrophoneYes
Built-in SpeakerYes
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (support alarm triggering by specified target type (human and vehicle)), exception
Linkage Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite

General
Power12 VDC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
LanguageEnglish
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Functionheartbeat,mirror
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
MaterialFront cover: metal, back cover: plastic
Dimension175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
WeightApprox. 345 g (0.8 lb.)
With Package WeightApprox. 635 g (1.4 lb.)

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
Safety CE-LVD: EN 62368-1: 2014/A11: 2017, CB: IEC 62368-1: 2014+A11
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
ProtectionIP66: IEC 60529-2013
