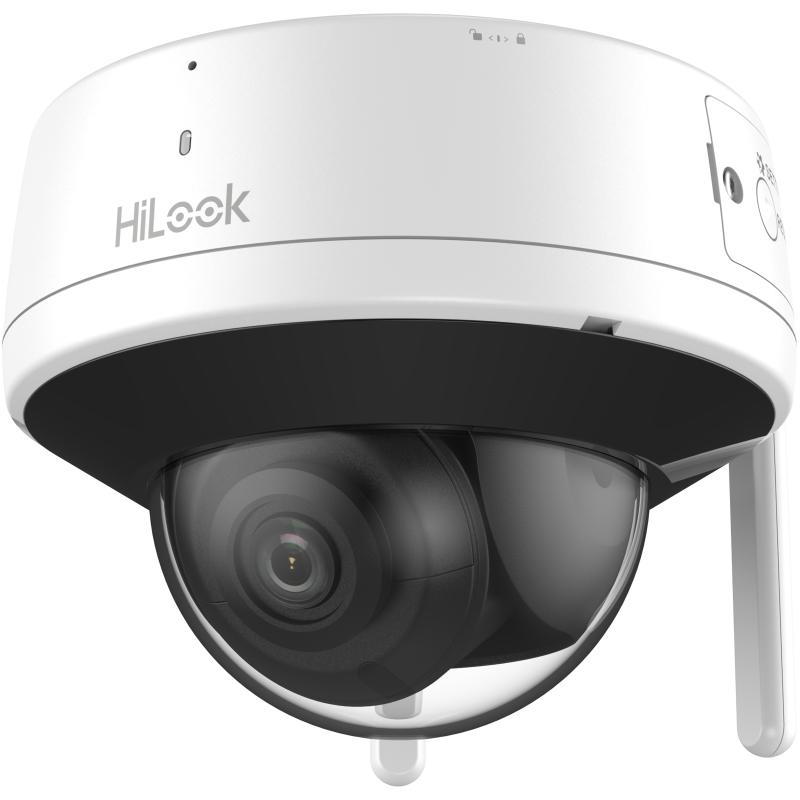

4 MP Outdoor Fixed Dome Wi-Fi Camera

  • High quality imaging with 4 MP resolution
  • Realizing Wi-Fi connection and easy installation
  • Provides real-time security via built-in two-way audio
  • Efficient H.265 compression technology
  • EXIR 2.0, advanced infrared technology with long IR distance
  • Water and dust resistant (IP66)
  • Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Hik-Connect cloud service and app for remote management and views of devices

View Less
View more
Data Sheet
Sales Inquiry

Available models:

IPC-D140HA-D/W(2.8mm)(W)(HiLook STD)/EU
IPC-D140HA-D/W(4mm)(W)(HiLook STD)/EU
IPC-D140HA-D/W(W)
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.9" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
  • ApertureF1.6
  • Iris TypeFixed
  • Lens MountM12
  • Depth of Field2.8 mm: 1.5 m to ∞ 4 mm: 2 m to ∞
  • DORI
  • DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
  • Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264
  • Video Bit RateUp to 2 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Audio
  • Audio Compression G.711ulaw/G.711alaw/AAC-LC
  • Audio Bit Rate64 Kbps (G.711)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 4 channels
  • APIONVIF, SDK
  • SecurityPassword protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
  • User/Hostadministrator
  • ClientiVMS-4200, HiLookVision, Hik-Partner-Pro
  • Wi-Fi
  • Frequency Range2.412 GHz to 2.472 GHz
  • Channel Bandwidth 20 MHz
  • Modulation802.11b: CCK, QPSK, BPSK,802.11g: OFDM,802.11n: OFDM
  • Wi-Fi ProtocolIEEE802.11b,IEEE802.11g,IEEE802.11n
  • Transfer Rate11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
  • Wireless RangeUp to 120 m (The performance varies based on actual environment)
  • Antenna2 Antennas
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, adjustable by client software
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Built-in MicrophoneYes,1 built-in microphone
  • Built-in SpeakerYes, 1 built-in speaker
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
  • Linkage Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
  • General
  • Power12 VDC ± 10%, 1 A, max. 10 W,Ø2 mm coaxial power plug,reverse polarity protection
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat, mirror
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • MaterialBase: metal, front cover: polycarbonate, back cover: polycarbonate
  • Dimension120 mm × 120 mm × 95 mm (4.7" × 4.7" × 3.7")
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • WeightApprox. 593 g (1.3 lb.)
  • With Package WeightApprox. 886 g (1.95 lb.)
  • Approval
  • EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
  • ProtectionIP66: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.9" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
Aperture
F1.6
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 1.5 m to ∞ 4 mm: 2 m to ∞
DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
Video Compression
Main stream: H.265/H.264 Sub-stream: H.265/H.264
Video Bit Rate
Up to 2 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Audio
Audio Compression
G.711ulaw/G.711alaw/AAC-LC
Audio Bit Rate
64 Kbps (G.711)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View
Up to 4 channels
API
ONVIF, SDK
Security
Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
User/Host
administrator
Client
iVMS-4200, HiLookVision, Hik-Partner-Pro
Wi-Fi
Frequency Range
2.412 GHz to 2.472 GHz
Channel Bandwidth
20 MHz
Modulation
802.11b: CCK, QPSK, BPSK,802.11g: OFDM,802.11n: OFDM
Wi-Fi Protocol
IEEE802.11b,IEEE802.11g,IEEE802.11n
Transfer Rate
11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
Wireless Range
Up to 120 m (The performance varies based on actual environment)
Antenna
2 Antennas
Image Settings
Saturation, brightness, contrast, sharpness, adjustable by client software
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Privacy Mask
4 programmable polygon privacy masks
Interface
Built-in Microphone
Yes,1 built-in microphone
Built-in Speaker
Yes, 1 built-in speaker
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Linkage
Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
General
Power
12 VDC ± 10%, 1 A, max. 10 W,Ø2 mm coaxial power plug,reverse polarity protection
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat, mirror
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material
Base: metal, front cover: polycarbonate, back cover: polycarbonate
Dimension
120 mm × 120 mm × 95 mm (4.7" × 4.7" × 3.7")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 593 g (1.3 lb.)
With Package Weight
Approx. 886 g (1.95 lb.)
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
Protection
IP66: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
